My fuel shutoff valve has failed and I need to replace it. I tried ordering a new one from Aircraft Spruce a month ago but it is still on backorder 30-45 days out.
Mine is a 3 port version and my plane only uses 2 ports (in/out) - what are other folks using? Where can I find a 2 port fuel shutoff?
Fuel Shutoff Valve
-
- Posts: 60
- Joined: Fri Apr 02, 2010 8:54 pm
Fuel Shutoff Valve
-Jim Pantas
N89DG
N89DG
-
- Posts: 60
- Joined: Fri Apr 02, 2010 8:54 pm
Re: Fuel Shutoff Valve

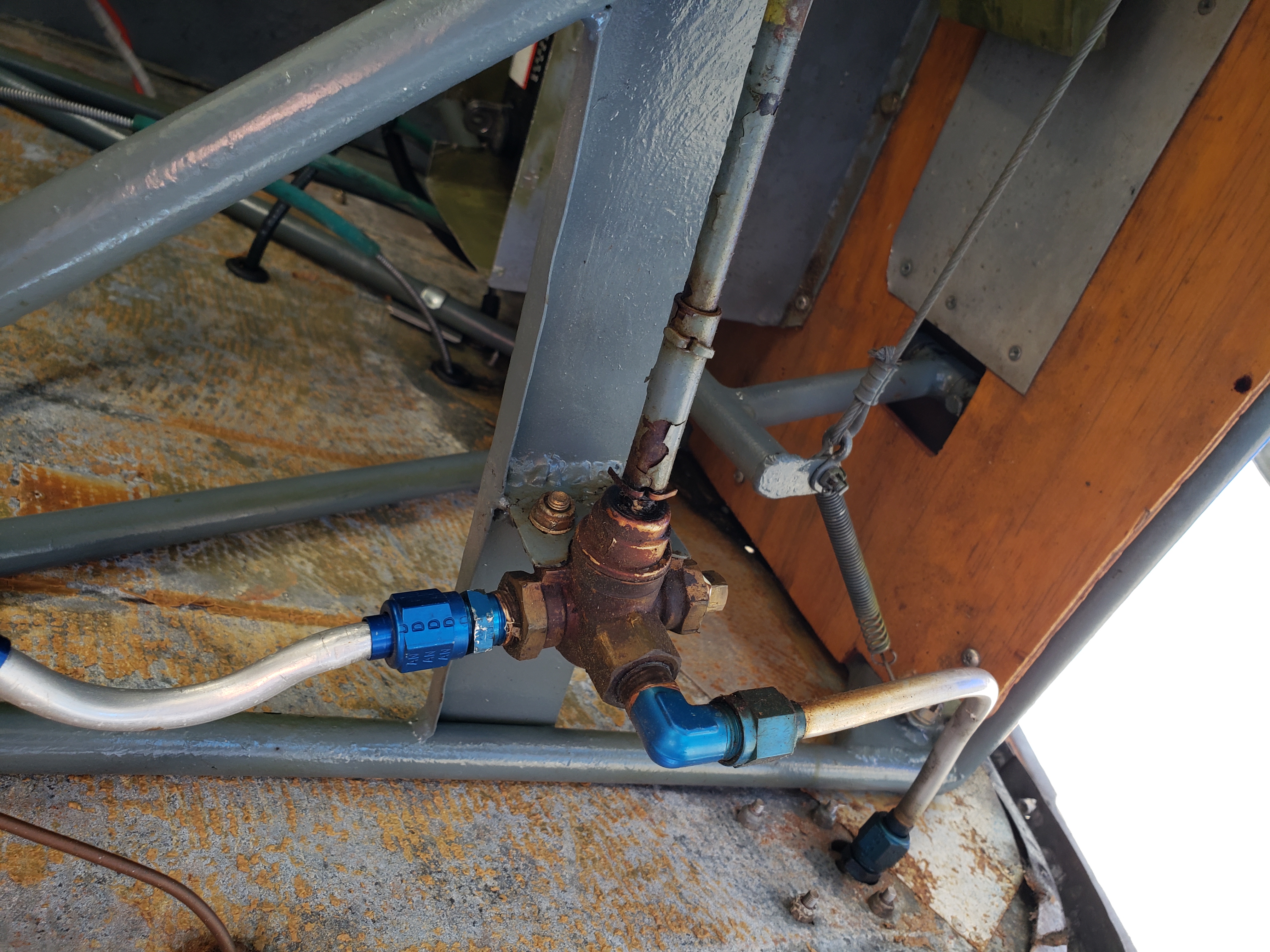

This what it looked like
- Attachments
-
- 20190106_150339.jpg (3.48 MiB) Viewed 3148 times
-Jim Pantas
N89DG
N89DG
-
- Posts: 236
- Joined: Wed Mar 17, 2010 5:44 am
Re: Fuel Shutoff Valve
I have a three port variety from Wicks.
It is listed as one for VariEz’s and works well fo me as I have two tanks.
It is listed as one for VariEz’s and works well fo me as I have two tanks.
Jeff Moore
Treasurer-HBA
Pendleton, IN.
Treasurer-HBA
Pendleton, IN.
- Bitshifter
- Posts: 202
- Joined: Thu Aug 02, 2012 5:12 pm
- Location: Avondale Pa
- Contact:
Re: Fuel Shutoff Valve
I used a WEATHERHEAD FUEL SHUT-OFF VALVE from ACS but it is available from other sources. Mine is also a three port with one plugged.
The Weatherhead valve looks very much like yours.
The Weatherhead valve looks very much like yours.
Ed White
HC 154
"In life 10% wrong is failure, in school it's an A"
HC 154
"In life 10% wrong is failure, in school it's an A"
-
- Posts: 236
- Joined: Wed Mar 17, 2010 5:44 am
Re: Fuel Shutoff Valve
You say it failed.
What failed? Some of these have replaceable o-rings.
You may be able to take it apart, clean everything up, replace the o-rings and put it back together.
This is the one I use. It's a little pricey but I found I was able to feel the detent positions better than the weather head variety.
Jeff Moore
What failed? Some of these have replaceable o-rings.
You may be able to take it apart, clean everything up, replace the o-rings and put it back together.
This is the one I use. It's a little pricey but I found I was able to feel the detent positions better than the weather head variety.
Jeff Moore
Jeff Moore
Treasurer-HBA
Pendleton, IN.
Treasurer-HBA
Pendleton, IN.
