Here are some more detailed pictures of how I made the aileron skins.
Steve
hc162 final aileron skin pressing
-
ssearle
- Posts: 34
- Joined: Sun Jan 31, 2016 6:35 pm
hc162 final aileron skin pressing
- Attachments
-

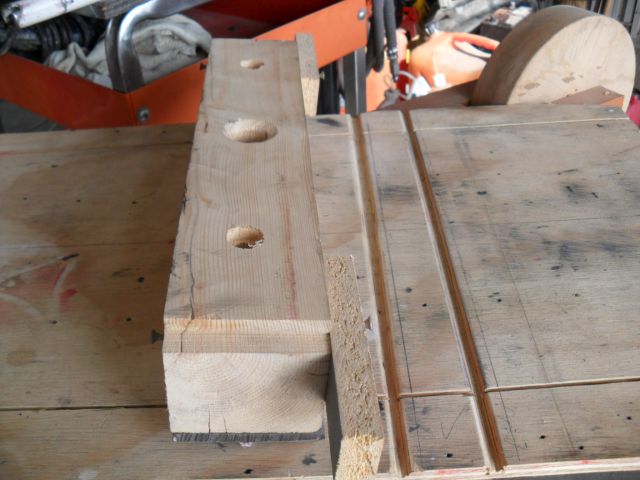

- Upper view of die to fit press.
- Aileron skin dies top view.jpg (73.46 KiB) Viewed 3131 times
-

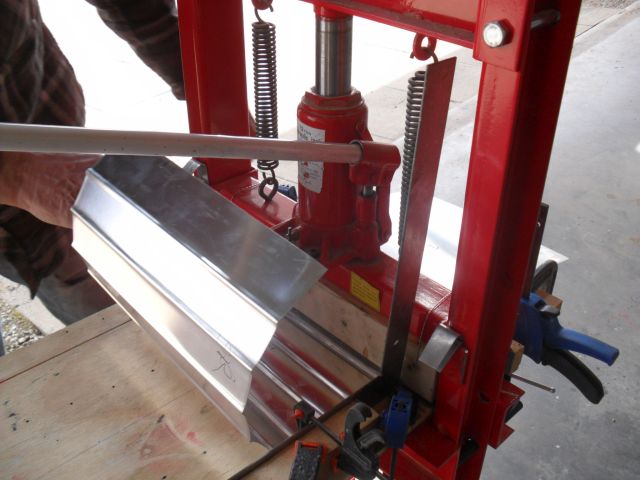

- As you can you can see by the curl of the skin due to spring back it requires tweaking afterwards in the brake to finish. It is a lot of work but I have more time than money.
- Aileron skin press.jpg (74.22 KiB) Viewed 3131 times
-

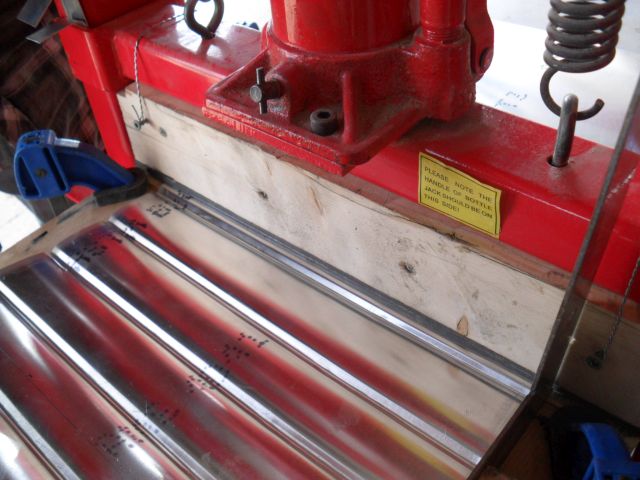

- Aileron skin press detail.jpg (81.87 KiB) Viewed 3131 times
-

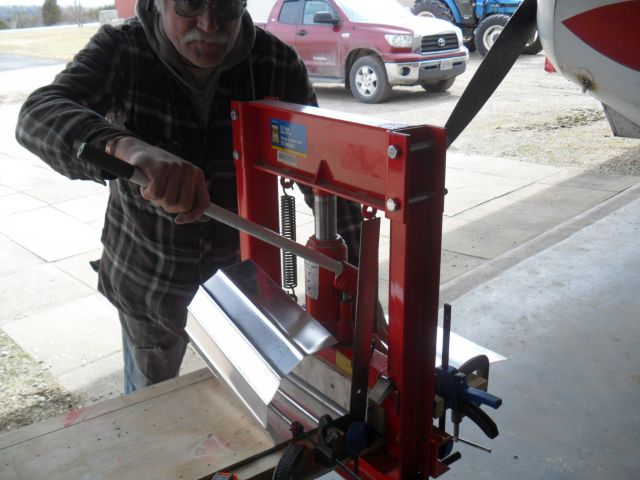

- I am feeding from my left and indexing the previous corrugation in 2nd groove. I found that when I held the sheet in the 2nd groove that the spacing widened. I then tried using my left hand on the feed side sheet when starting the press it worked perfectly. Creates scrap until you get it right.
- Aileron skin pressing.jpg (77.49 KiB) Viewed 3131 times
-
dougm
- Posts: 498
- Joined: Wed Mar 17, 2010 2:39 pm
- Location: Douglas, MA
- Contact:
Re: hc162 final aileron skin pressing
Looks great, Steve! Now you got me thinking about doing this myself...... hhmmmmm more tools.
Doug
Building Hatz Classic s/n 093 & Rotec R3600
Hatz Webmaster
Building Hatz Classic s/n 093 & Rotec R3600
Hatz Webmaster
-
jwhanson
- Posts: 96
- Joined: Tue Mar 16, 2010 11:55 pm
Re: hc162 final aileron skin pressing

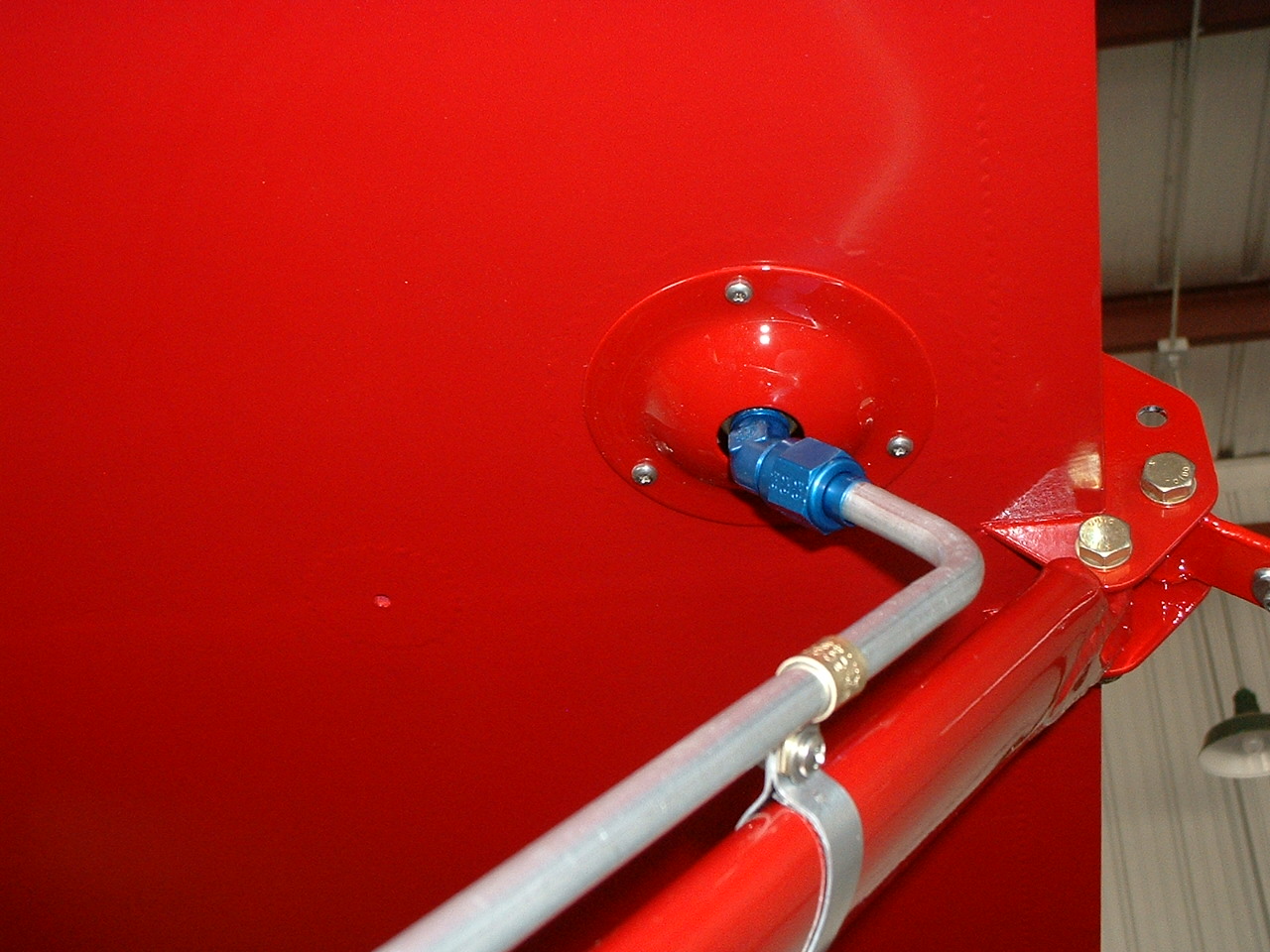

Another use for a press like this would be making the round fairings for the fuel tank outlets. I made mine with fiber glass but it would be easy to punch them out from soft aluminum. The press is available from Harbor Freight for a pretty reasonable price. The forms could be turned out on a lathe using cherry or maple wood.
