Jigging the fairleads tubes for welding

[orchardair]

Hatzers,

I am looking for creative ideas on how to jig the tube that holds the fairlead while I weld it.

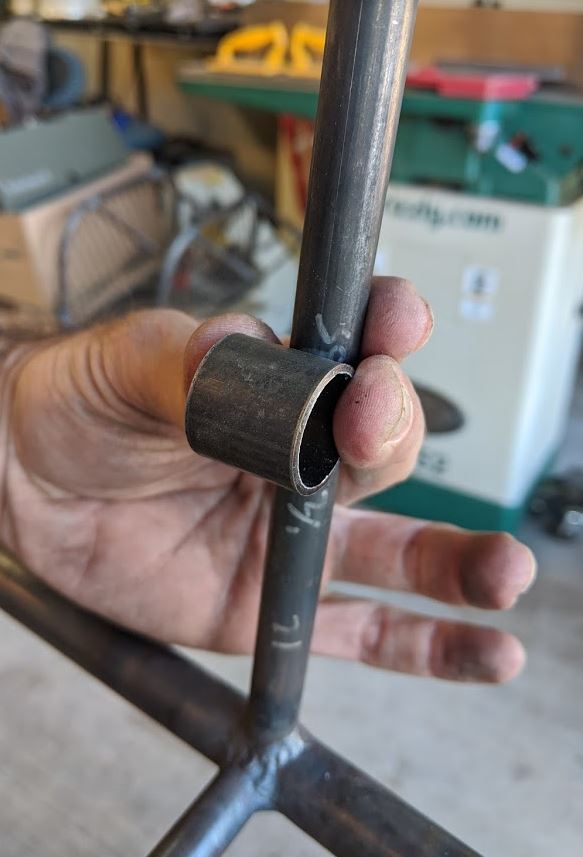

Not having asbestos hands, I am afraid this idea won't work:


Thanks in advance.

[Bitshifter]

I used the small 90 degree welding magnets from Harborfreight.

[mmarien]

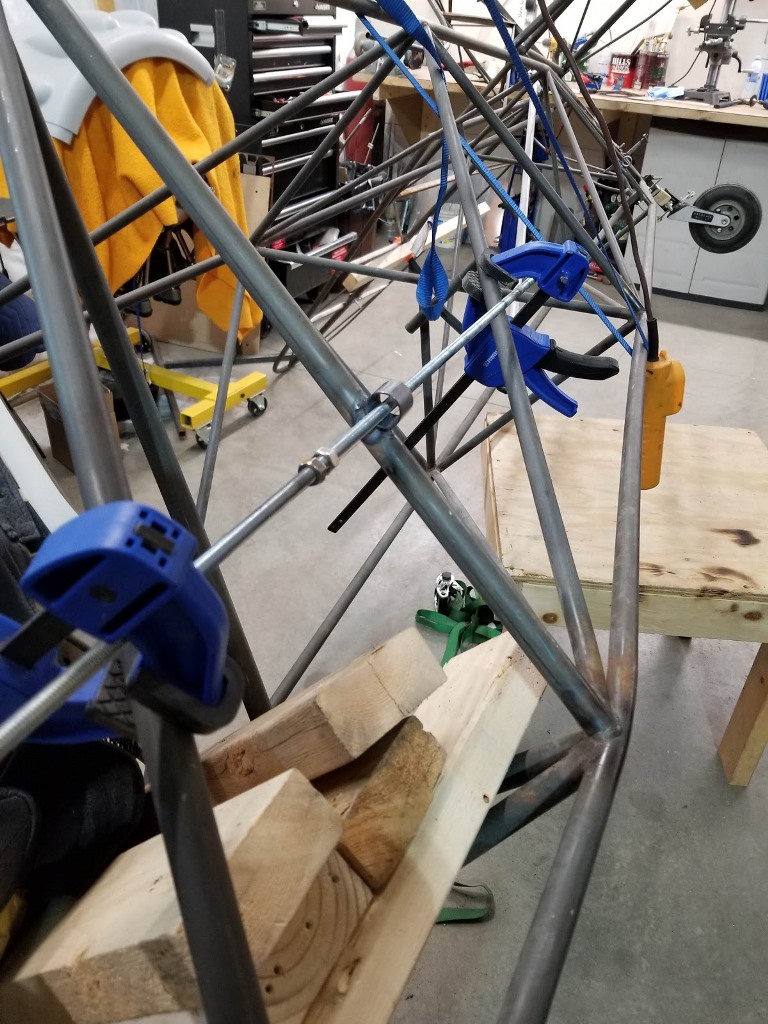

I used a rod to hold it in place. Also helped to align it.

20191205_144006 (small).jpg (228.76 KiB) Viewed 3248 times

[orchardair]

Murryay
The rod was a great idea.
I got these from ACS: Part# 05-15051 MFR Model# M-035-000 And I think they'll work well.

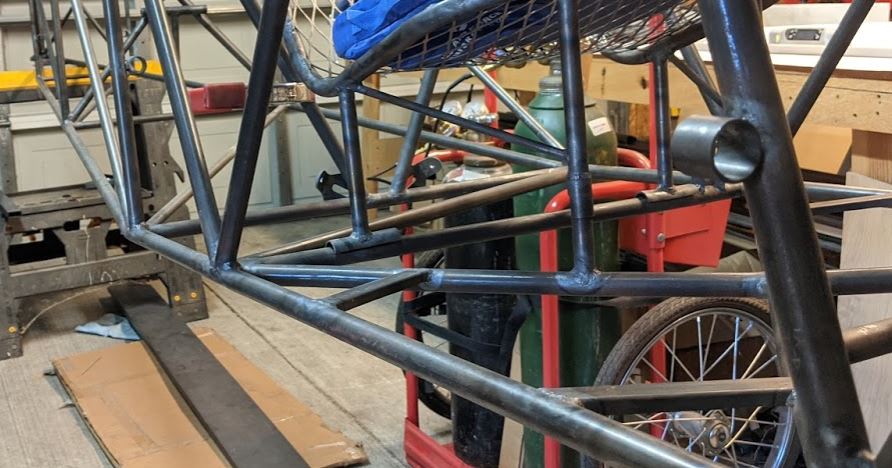

Here are the 3/4" length of 7/8" tube tack-welded:


I took a string between the rudder pedal and the rudder to figure out the best placement for them, and the middle ones (in station 82.5 / 84) turned out to be much higher than the plans call for. makes for a straighter line to the rudder.

[mmarien]

I did the same thing, but ended up changing them to fit the stringers better. Dang!

[orchardair]

Did you place the fairlead tube in station 82.5 inside or outside of the longeron line? Your picture seems to suggest it is on the outside, but I think the plans show it on the inside.

I did the same thing, but ended up changing them to fit the stringers better. Dang!

[mmarien]

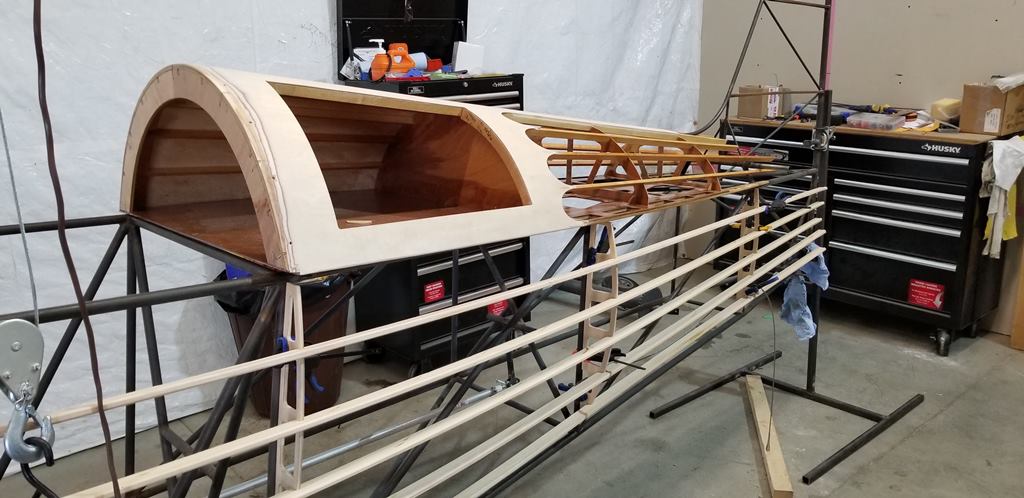

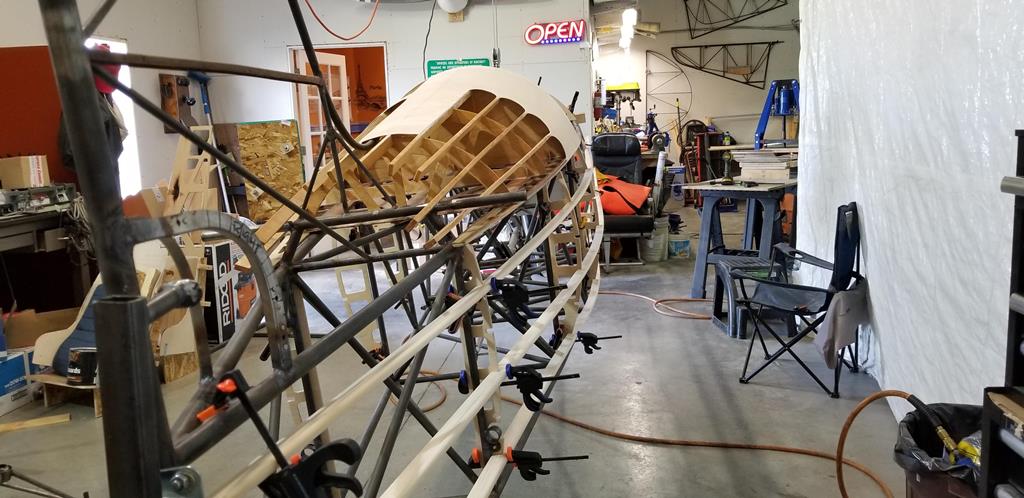

It's on the outside. I redesigned the turtle deck and stringers. I'm only using five stringers and a wood turtle deck but I made my plane is a little fatter and rounder than the Classic. I was able to run the rudder cables on the outside all the way to the back. I put fairleads at Sta 84 and 151



[orchardair]

Very nice!

[orchardair]

I am now thinking that another (pair of) fairleads need to be installed between stations 45 and 82.5
I just don't see how according to the plans you don't get the rudder cable rubbing on the diagonal members that converge at 70" between those stations

[mmarien]

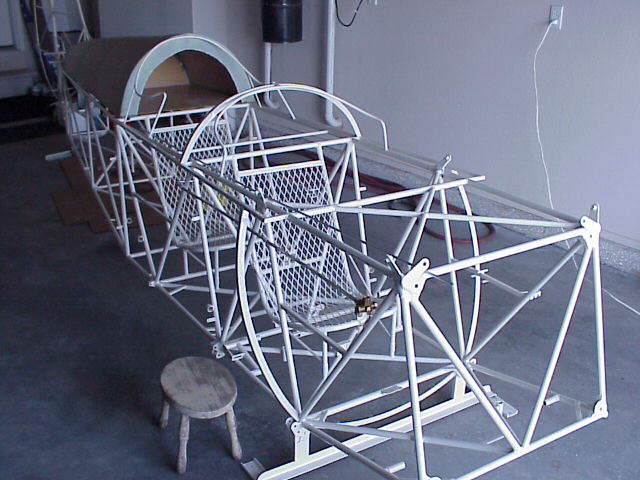

This picture from the Makelan CD shows the fairlead in front of Sta 82.5
