Hi Everyone,
Steel is arriving for the rudder and we are ready to start.
Looking at the plans though, I am a bit confused on the joint at the top of the rudder bow. Looking at the plans, the large vertical tube looks flared at the end to accept the 3/8ths tube bow.
Any pics of this would be greatly appreciated. Having a bit of a time figuring this out.
Thanks in advance,
Doug
pics of welded rudder
-
Ebby
- Posts: 109
- Joined: Wed Mar 17, 2010 7:32 pm
- Location: Camden NY
Re: pics of welded rudder

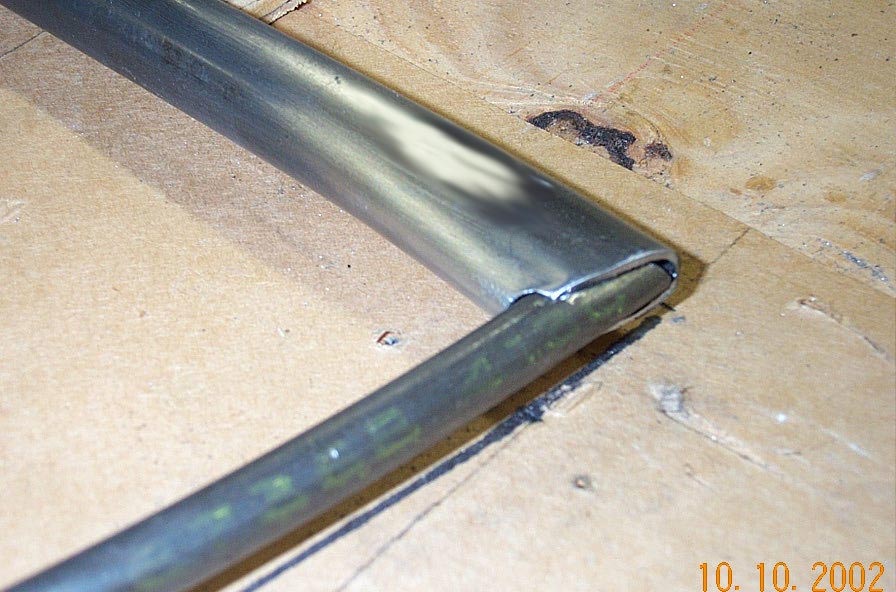

- The only picture I could find. Hope it helps.
- Rudder bow fit at rudder post top.jpg (99.84 KiB) Viewed 2776 times
Ebby
Hatz Classic S/N 37
Flying!
Hatz Classic S/N 37
Flying!
-
beechdrvr
- Posts: 33
- Joined: Sun Mar 01, 2020 10:05 pm
Re: pics of welded rudder
Thanks Doug,
Was hoping you had one. Perfect. Its all clear now.
Cheers
Was hoping you had one. Perfect. Its all clear now.
Cheers
-
Bitshifter
- Posts: 202
- Joined: Thu Aug 02, 2012 5:12 pm
- Location: Avondale Pa
- Contact:
Re: pics of welded rudder
I have a few pics on my site that show another option:
http://edwinwhite.com/gallery/index.php ... e/P1020255
http://edwinwhite.com/gallery/index.php ... e/P1020256
http://edwinwhite.com/gallery/index.php ... e/P1020257
http://edwinwhite.com/gallery/index.php ... e/P1020255
http://edwinwhite.com/gallery/index.php ... e/P1020256
http://edwinwhite.com/gallery/index.php ... e/P1020257
Last edited by Bitshifter on Sun Dec 06, 2020 1:34 pm, edited 1 time in total.
Ed White
HC 154
"In life 10% wrong is failure, in school it's an A"
HC 154
"In life 10% wrong is failure, in school it's an A"
-
beechdrvr
- Posts: 33
- Joined: Sun Mar 01, 2020 10:05 pm
Re: pics of welded rudder
Thanks Ed,
Found yours earlier. Exactly what I needed to see. Thanks for replying.
Doug D.
Found yours earlier. Exactly what I needed to see. Thanks for replying.
