Wheel Pants

Post by M Lightsey »

Anyone have pictures of their wheel pants installations? Especially the mounting brackets, no sense trying to reinvent the wheel here.
Thanks,
Mark
Top
mmcgrew
Posts: 154
Joined: Thu Mar 18, 2010 8:03 pm

Re: Wheel Pants

Post by mmcgrew »

The pants I bought were terrible (ASS). had to totally rebuild. During rebuild I laminated a piece of aluminum at the attachment points for a secure anchor. I then fabricated an extension on my axle bolts and threaded a bolt hole. See pics. 2 nd pic in second post.

TKS

Michael
N9648B
Attachments

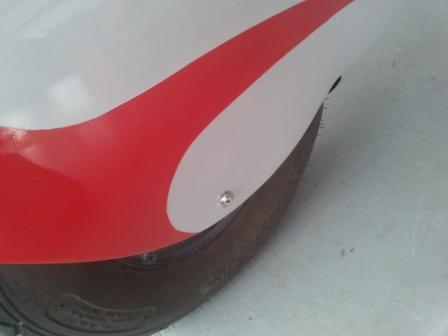

Wheel Pants.jpg
Wheel Pants.jpg (13.52 KiB) Viewed 2634 times
Top
mmcgrew
Posts: 154
Joined: Thu Mar 18, 2010 8:03 pm

Re: Wheel Pants

Post by mmcgrew »

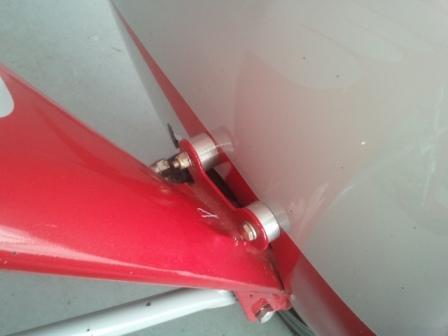

Second pic
Attachments
wheel pants 2.jpg
wheel pants 2.jpg (11.8 KiB) Viewed 2633 times
