hc162 aileron progress
-
ssearle
- Posts: 34
- Joined: Sun Jan 31, 2016 6:35 pm
hc162 aileron progress
This is my aileron progress.
- Attachments
-
- Home made Dies to use with readily available press.

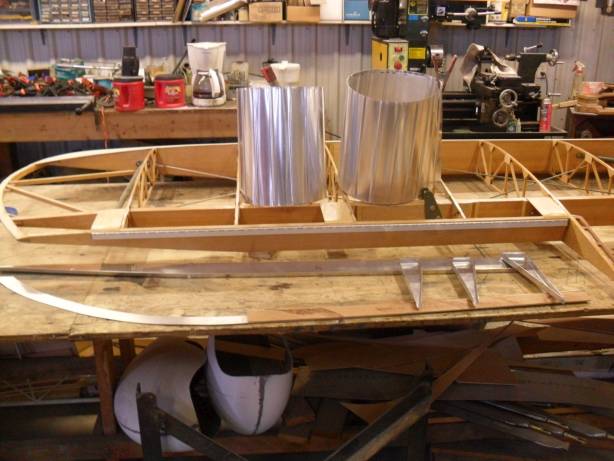

- Aileron Skin dies.JPG (65.59 KiB) Viewed 4082 times
-

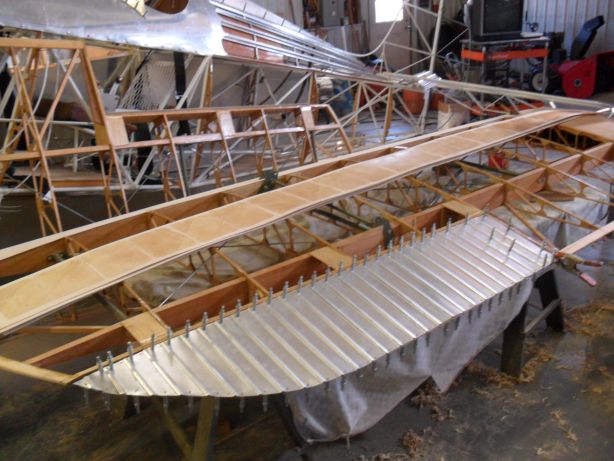

- Aileron skins and parts lowe r wing.jpg (87.31 KiB) Viewed 4082 times
-

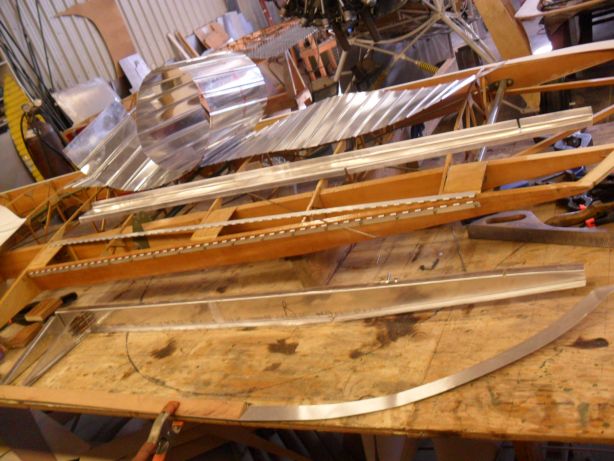

- Aileron skins and parts.jpg (70.9 KiB) Viewed 4082 times
-

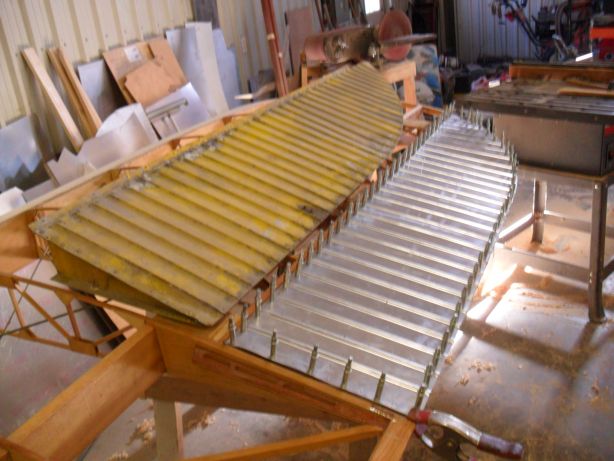

- Orig Waco aileron.JPG (79.34 KiB) Viewed 4082 times
-

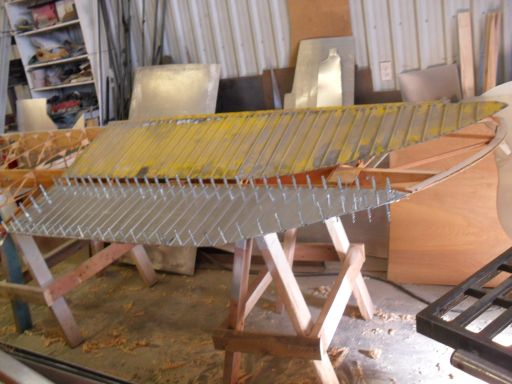

- Orig Waco aileron view 2.jpg (64.15 KiB) Viewed 4082 times
-
ssearle
- Posts: 34
- Joined: Sun Jan 31, 2016 6:35 pm
Re: hc162 aileron progress
More pictures
- Attachments
-

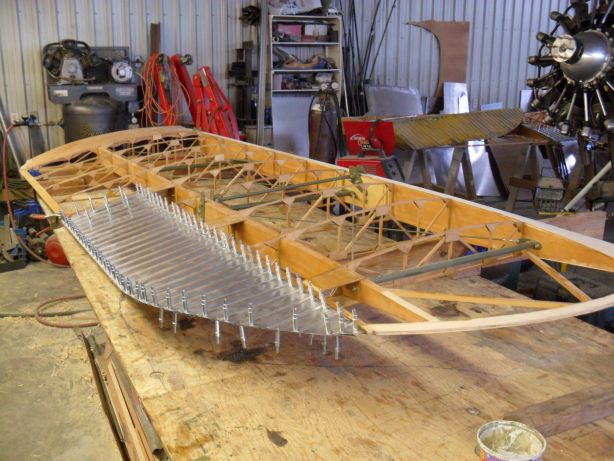

- Aileron lower left.jpg (87.59 KiB) Viewed 4081 times
-
- Aileron lower right.jpg (90.9 KiB) Viewed 4081 times
-

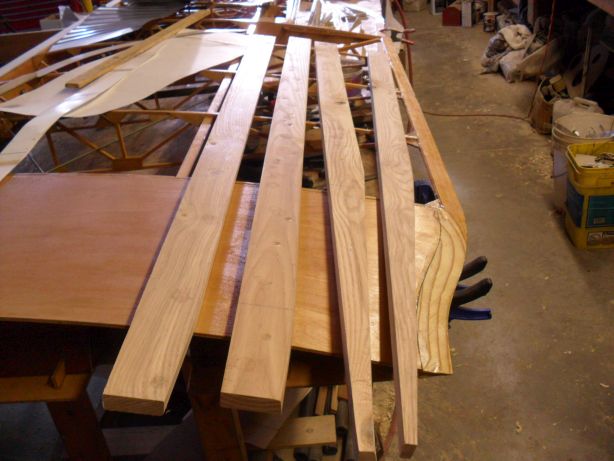

- An other way to form aileron spars is to use form blocks like making ribs.

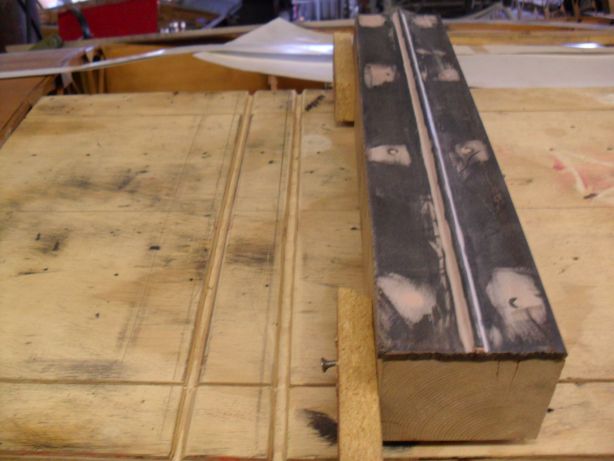

- Aileron spar form blocks.jpg (74.16 KiB) Viewed 4081 times
-
painless
- Posts: 100
- Joined: Fri Apr 09, 2010 7:39 pm
Re: hc162 aileron progress
Very nice! How about more pics of your skin dies? I'm planning to do the same when the time comes.
-
ssearle
- Posts: 34
- Joined: Sun Jan 31, 2016 6:35 pm
Re: hc162 aileron progress
Hello Jeff
As it so happens I screwed up. When building the last aileron I found that I had two lower skins left(12in wide). Some where I had used an upper skin (12.5in wide). I'll be setting everything up again to press another skin so there will more pics.
As it so happens I screwed up. When building the last aileron I found that I had two lower skins left(12in wide). Some where I had used an upper skin (12.5in wide). I'll be setting everything up again to press another skin so there will more pics.
-
painless
- Posts: 100
- Joined: Fri Apr 09, 2010 7:39 pm
Re: hc162 aileron progress
Well, it's good to know I'm not the only one that screws up! Long story short, I learned how to do splices in tubing this weekend.......
Looking forward to the pictures.
Looking forward to the pictures.
-
ssearle
- Posts: 34
- Joined: Sun Jan 31, 2016 6:35 pm
Re: hc162 aileron progress
Hi Jeff
Thanks for your interest. I'm a do it your self type guy. If I think I can do it I'll give it a try. I research everything I can find on an topic, put in a pot, stir it up and add my own ideas and come out with my plan. I've built a big heap of scrap metal in the process, but this is my thing, I have more time than money. Incidentally a lot of this scrap gets reused.
Regards Steve
Thanks for your interest. I'm a do it your self type guy. If I think I can do it I'll give it a try. I research everything I can find on an topic, put in a pot, stir it up and add my own ideas and come out with my plan. I've built a big heap of scrap metal in the process, but this is my thing, I have more time than money. Incidentally a lot of this scrap gets reused.
Regards Steve
-
HC85
- Posts: 114
- Joined: Sat Aug 03, 2013 5:34 pm
Re: hc162 aileron progress
Great photos!
I've also made a mess of some things during the process.... part of the fun I reckon!
Looks like you are doing very nice work! Thanks for posting, keep em' coming please! Very interesting and satisfying to see how folks are doing things out there.
Rick
I've also made a mess of some things during the process.... part of the fun I reckon!
Looks like you are doing very nice work! Thanks for posting, keep em' coming please! Very interesting and satisfying to see how folks are doing things out there.
Rick
