Just because I am back at it, I figured I'd post a picture of my latest welding session, the aileron idlers:

Welding again, after a long hiatus


[HC85]

Good to see your still at it!

I noticed that you didn't open the ends up and you that you left an extended amount of length on the tubes...... I went ahead and burnt mine up on the first try ....cause I didn't do as you did! ... I did those a while back to learn how to weld... or .....how not to weld.

Nice work!

[HC85]

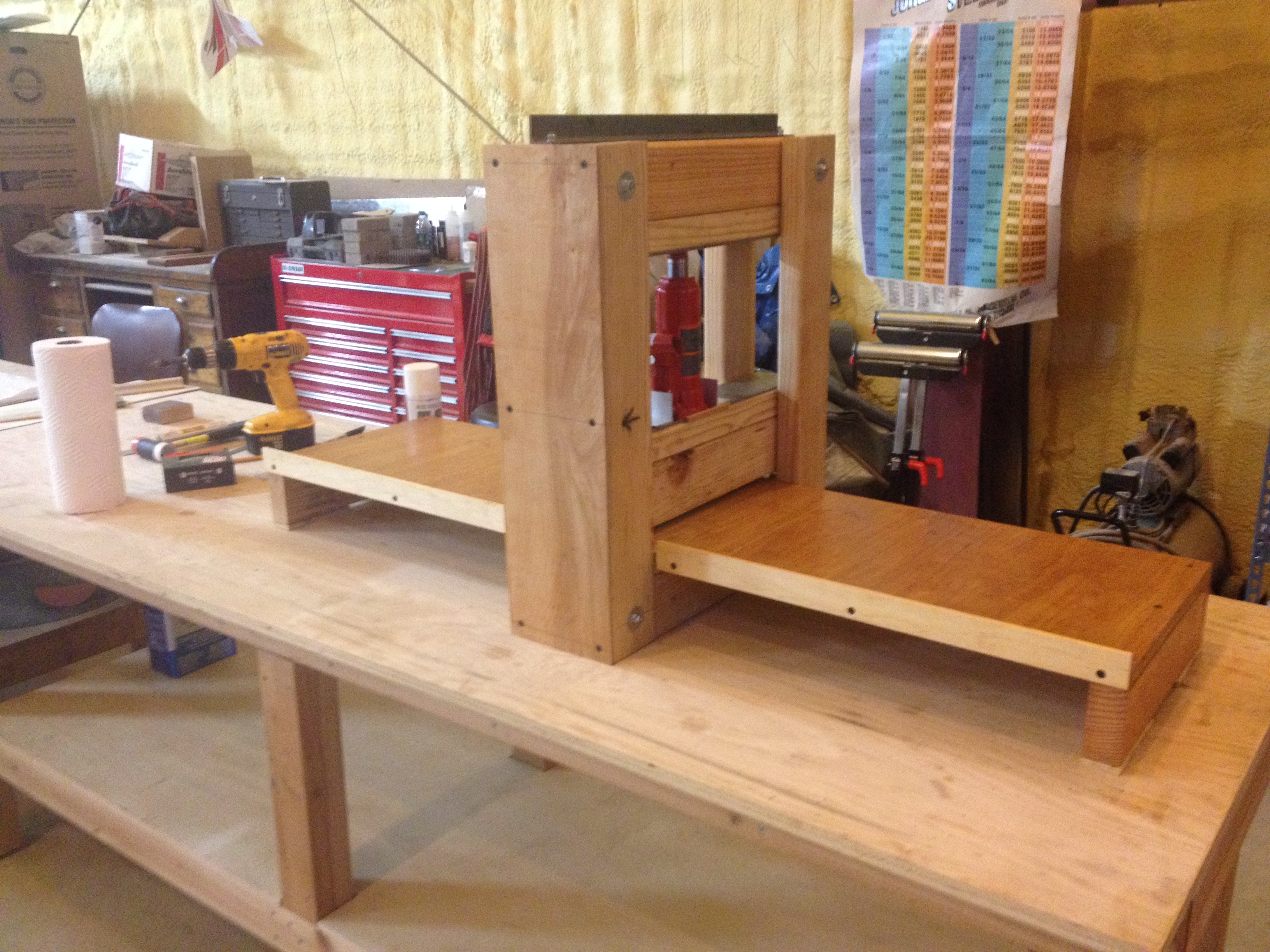

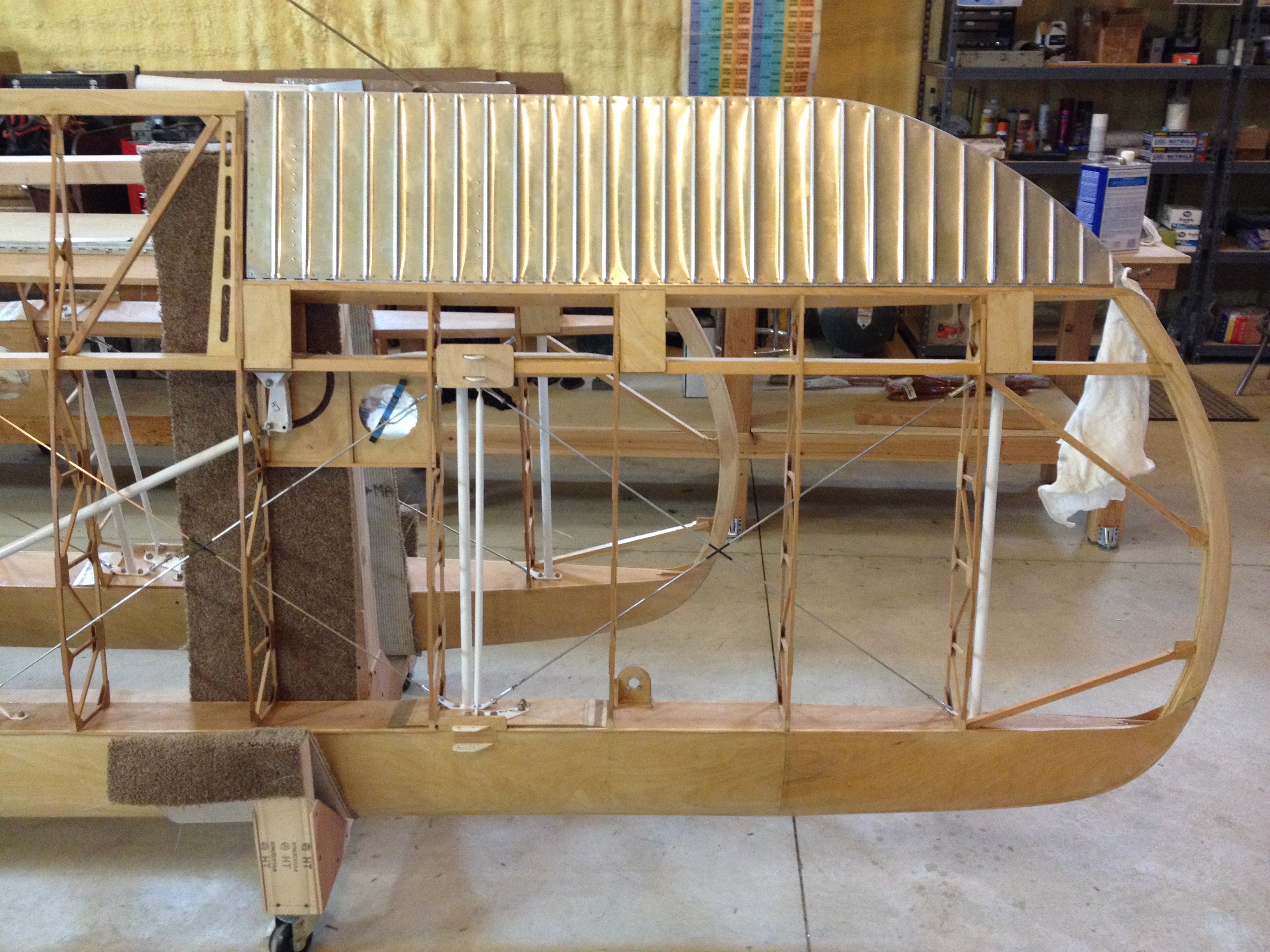

A couple shots ...my lower wings and aileron skin press. One more aileron to close and the lowers are done. Uppers already done, CTR section done. Fuse Next!

[orchardair]

Nice work!
I might make you an offer on your aileron skin press when you're done!

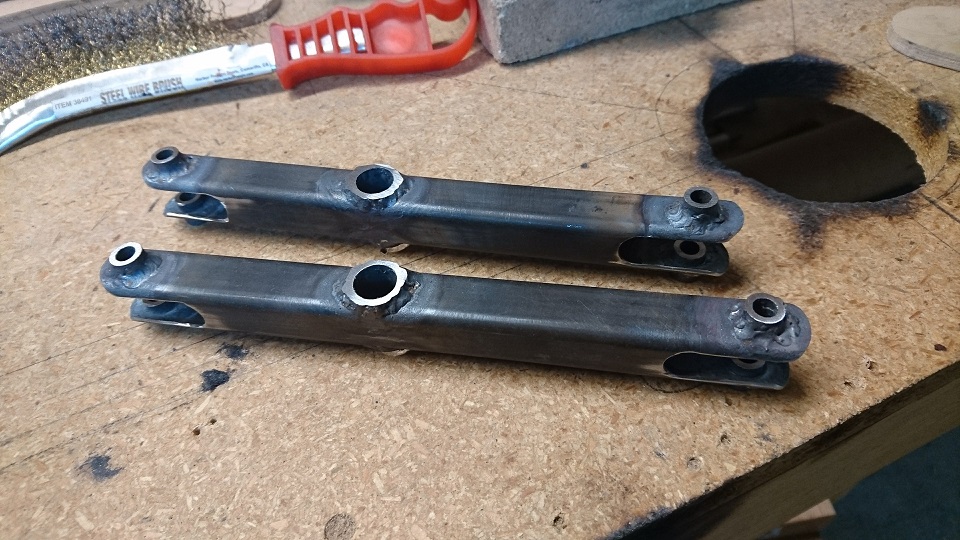

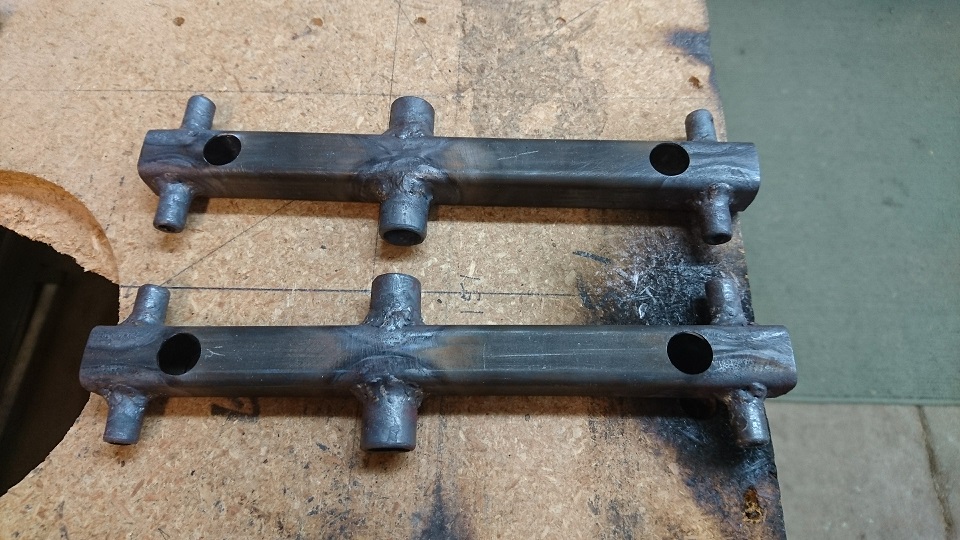

Just to show the end result of my aileron Idlers (pre paint).

[HC85]

Hey thanks!

I thought about bringing it to Brodhead this year and let some folks borrow it if they need to. It is not perfect, but did a good job for me. I used 2024 T-3 and liberal amounts of spray lube (WD-40) on the metal, after many practice sheets!

The sheet can get off kilter if ya don't pay attention, but that's half fun I guess. I have another friend who expressed interest in using it also. Maybe it could become a "pass-around tool"?

Your idlers are lookin good!

[orchardair]

Aileron brackets in 67 easy steps...

Start with enough material so that you don't burn edges when welding.

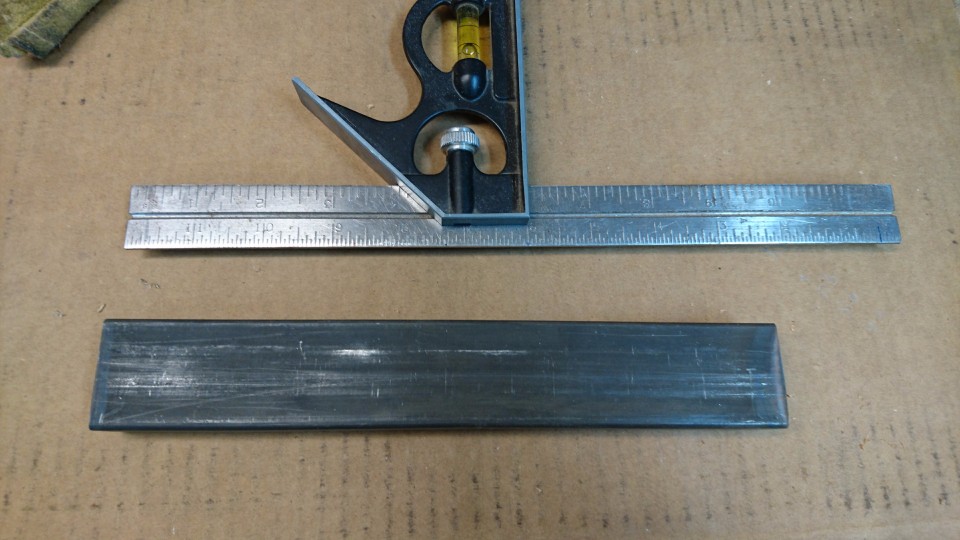

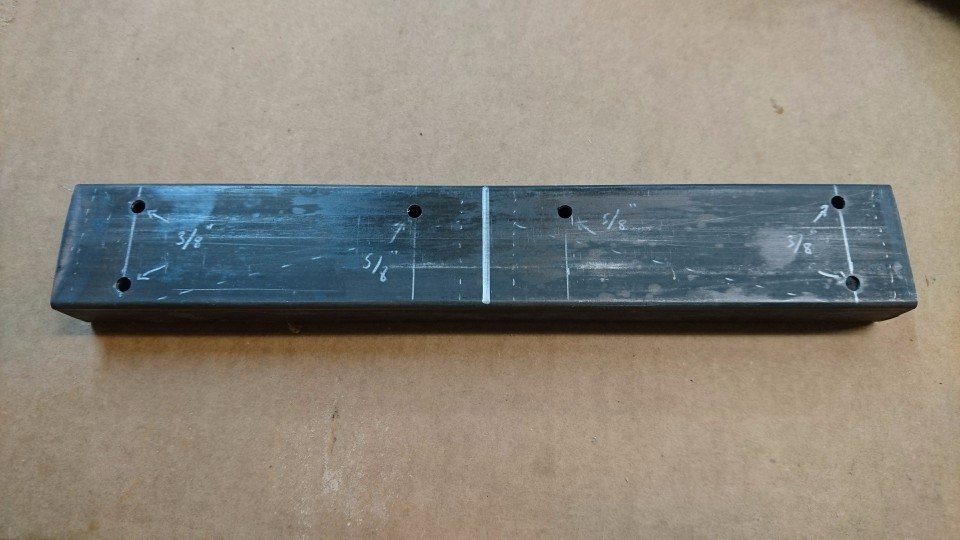

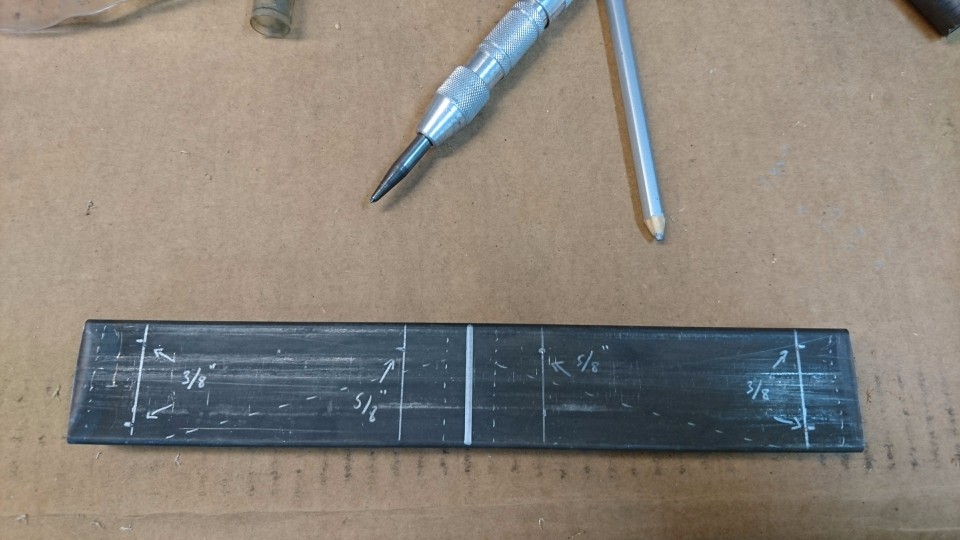

Draw hole locations. Make sure you make mirror image parts.

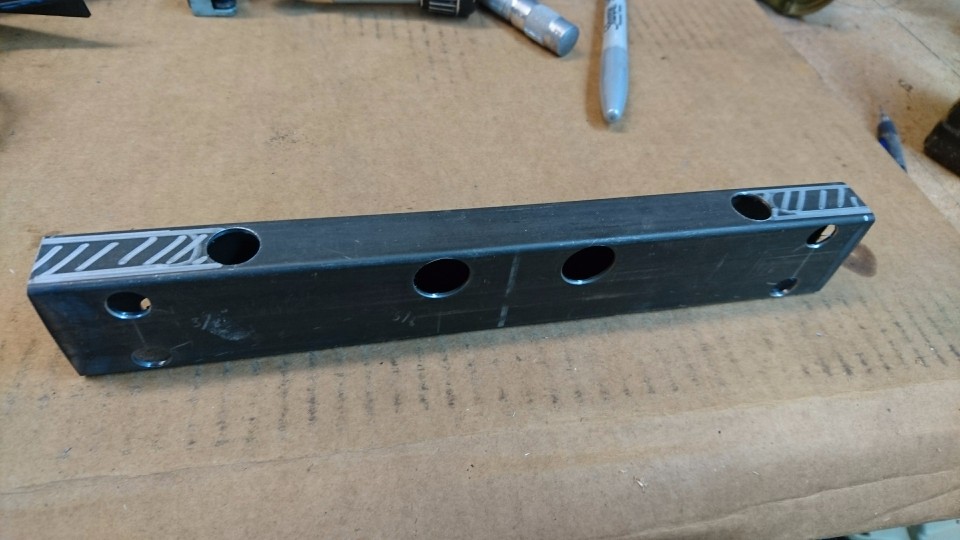

Drill pilot holes...

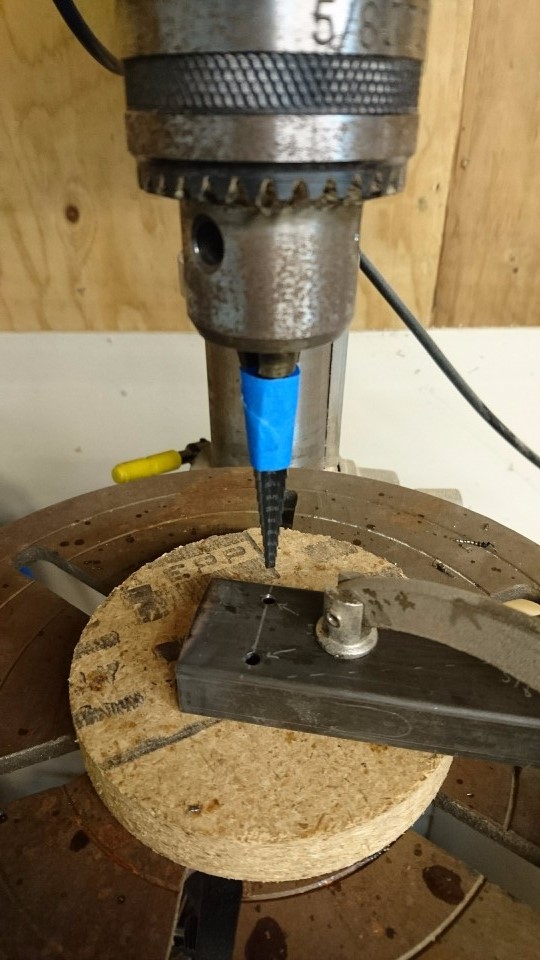

Enlarge the holes with step drill bit. (Mark how deep you have to go!)


Also mark the cutouts. (don't cut yet).


(to be continued)

[orchardair]

Aileron brackets, continued...

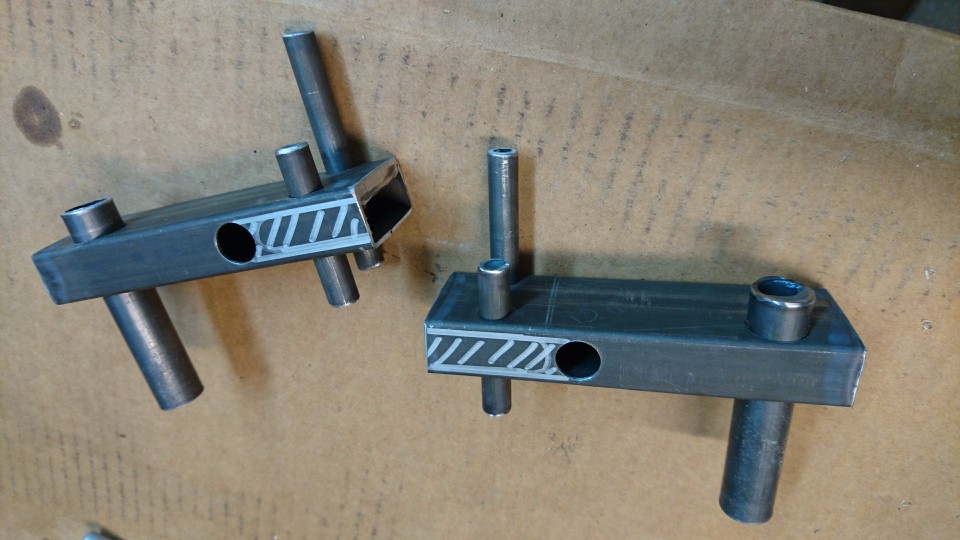

Cut the large piece, add tubes, leave extra long for now.


to be continued once welding has been done.

[HC85]

Sweet! ( I burnt the first set of mine up for those too! )
